The D1005 naturally aspirated engine, operating at 3600 rpm, meets EPA/CARB Tier 4 emissions standards. Part of the Kubota 05 Series, the D1005-E3B engine is a leading choice in its horsepower range, favored by numerous industrial equipment manufacturers. Known for its high-speed performance within a compact design, this engine ensures a smooth transition from EPA Tier 2 to EPA Tier 4 while maintaining consistent performance and physical attributes. Kubota’s E-TVCS (Three Vortex Combustion System) has been refined for improved emission control. Enhanced airflow, an optimized combustion chamber, and a redesigned piston recess contribute to reduced particulate matter (PM) levels, complying with stringent emission regulations.

D1005-E3B (3600 rpm) ENGINE SPECIFICATIONS

MAXIMUM POWER         MAXIMUM TORQUE         EMISSIONS

18.5 kW                        40.3 lb-ft @ 2600 rpm      EPA CARB Tier 4 LEVEL

NEW / REMAN

The V3800DI-T-E3B is a vertical, water-cooled 4-cycle diesel engine that meets EPA/CARB Tier 3 and EU Stage IIIA emissions regulations. It features four cylinders, with a displacement of 3.769 L (230.0 cu in) and a bore and stroke of 100.0 x 120.0 mm (3.937 x 4.724 in). The engine is turbocharged and utilizes direct injection for combustion, with an in-line pump fuel system.

V3300-T-E2B ENGINE SPECIFICATIONS

MAXIMUM POWER       MAXIMUM TORQUE                    EMISSIONS

74.0 kW                      239.7 lb-ft @ 2600 rpm            EPA/CARB Tier 3 + EU Stage IIIA

NEW / REMAN

The V3800DI-T-E2B is a vertical, water-cooled 4-cycle diesel engine that meets EPA/CARB Tier 2 and EU Stage II emissions regulations. It features four cylinders with a bore and stroke of 100.0 x 120.0 mm (3.937 x 4.724 in) and a displacement of 3.769 L (230.0 cu in). The engine is turbocharged and utilizes direct injection for combustion, with an in-line pump fuel system.

Z482-E3B ENGINE SPECIFICATIONS

MAXIMUM POWER   MAXIMUM TORQUE               EMISSIONS

72.8 kW                   97.6lb-ft @ 2600 rpm   EPA/CARB Tier 2 level+EU StageII LEVEL

NEW / REMAN

The V3300-T-E2B is a vertical, water-cooled 4-cycle diesel engine that meets EPA/CARB Tier 2 and EU Stage II emissions regulations. It features four cylinders, with a displacement of 3.318 L (202.5 cu in) and a bore and stroke of 98.0 x 110.0 mm (3.86 x 4.331 in). The engine is turbocharged and utilizes indirect injection for combustion, with an in-line pump fuel system.

V3300-T-E2B ENGINE SPECIFICATIONS

MAXIMUM POWER       MAXIMUM TORQUE                    EMISSIONS

65.1 kW                      208.3 lb-ft @ 2600 rpm        EPA/CARB Tier 2 level+EU StageII LEVEL

NEW / REMAN

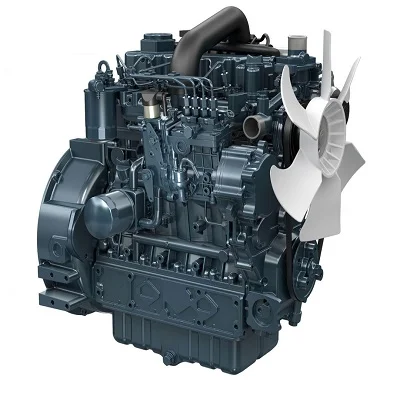

The V3300DI-E2B is a vertical, water-cooled 4-cycle diesel engine that complies with EPA/CARB Tier 2 and EU Stage II emissions regulations. It has four cylinders, a displacement of 3.318 L (202.5 cu in), and a bore and stroke of 98.0 x 110.0 mm (3.86 x 4.331 in). The engine is naturally aspirated and features direct injection for combustion, with an in-line pump fuel system.

V3300DI-E2B ENGINE SPECIFICATIONS

MAXIMUM POWER       MAXIMUM TORQUE                    EMISSIONS

54.9  kW                      180 lb-ft @ 2600 rpm        EPA/CARB Tier 2 level+EU StageII LEVEL

NEW / REMAN
