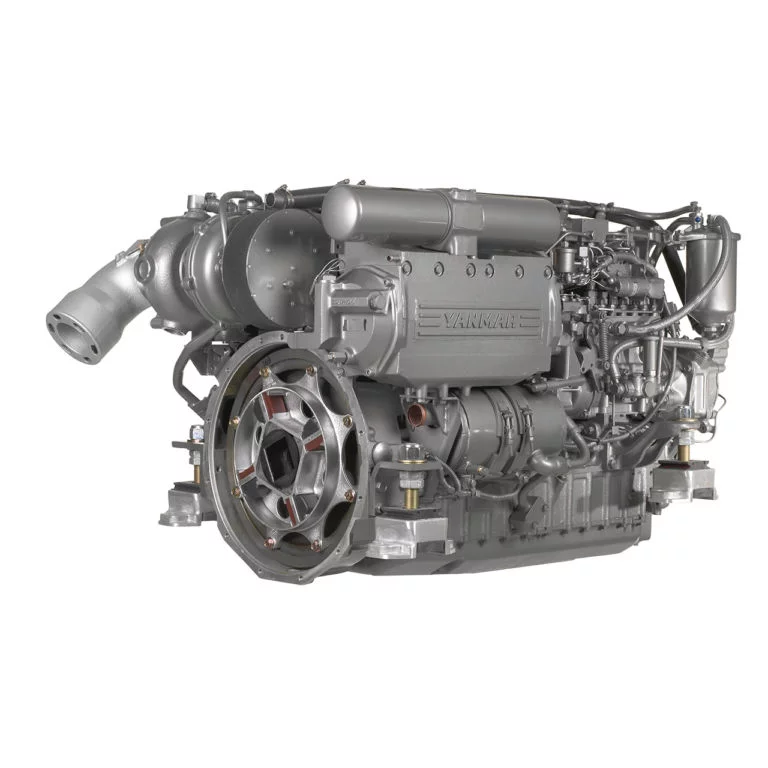

The 6LY2A-UTP engine offers impressive performance, delivering a rated output of 272 kW (370 mph) at a rated speed of 3300 rpm. With a displacement of 5.813 L (354 cu. in) and a six-cylinder configuration, this engine ensures robust power and efficiency. Its direct injection system, paired with an in-line pump, provides excellent fuel combustion, while the turbocharged and intercooled aspiration enhances overall performance. The engine is equipped with a 12V 80A alternator and has a dry weight of 535 kg (1179 lbs.), making it a compact yet powerful option. The engine measures 1428 mm x 692 mm x 736 mm and features mechanical controls. Additionally, it meets essential certifications such as RCD 1, IMO Tier 2, EMC, and SOLAS, ensuring compliance with international maritime standards.

ENGINE SPECIFICATIONS

Rated Output              Rated Speed

272 kW / 370 mph            3300 rpm

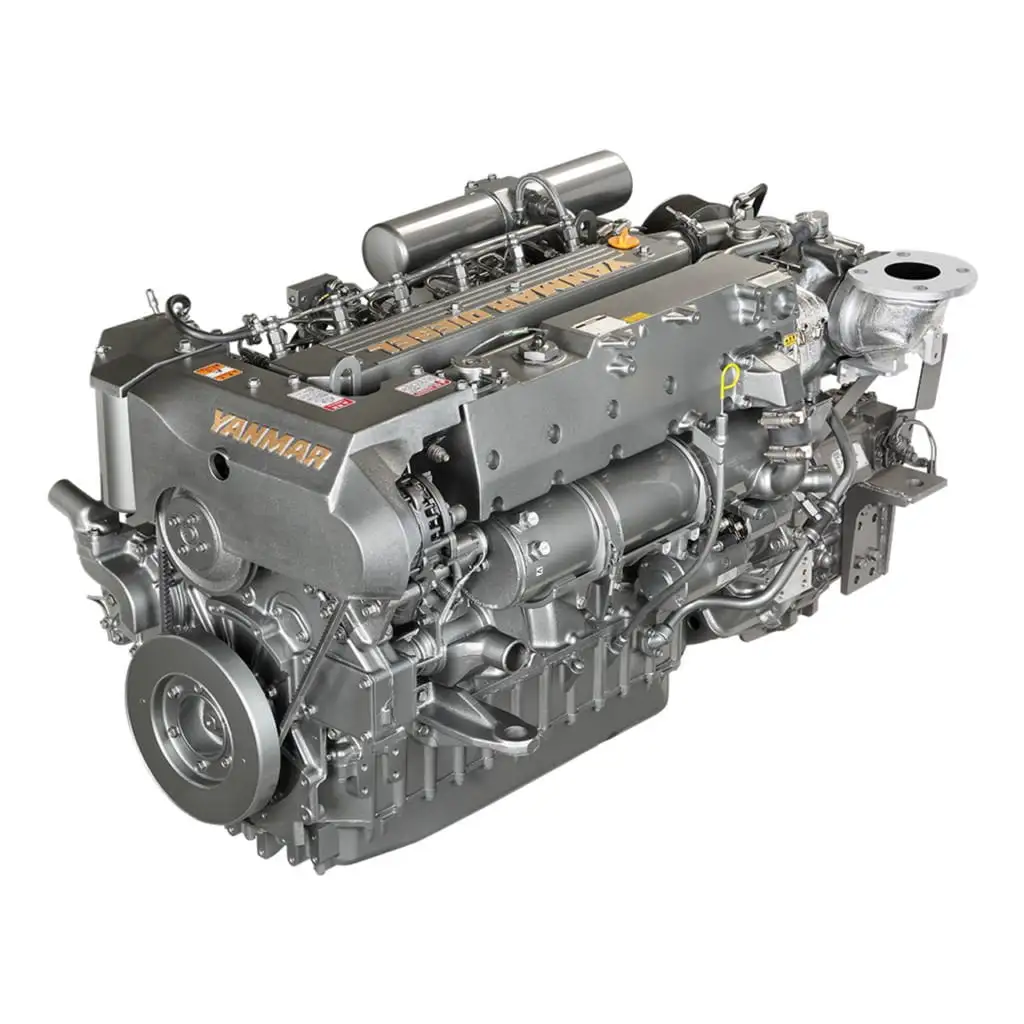

The 6LY2M-WDT is a high-performance marine engine offering a rated output of 243 kW (330 mph) and a rated speed of 3200 rpm. With a displacement of 5.813 L (354 cu. in) and six cylinders, it is engineered for exceptional power and efficiency. The engine features a cylinder bore of 106 mm and a stroke of 110 mm (4.17 in x 4.33 in), with a direct injection, in-line pump combustion system. Turbocharged and intercooled, it provides enhanced performance. Equipped with a 12V-80A alternator, the engine has a dry weight of 535 kg (1179 lbs.) and dimensions of 1412 mm x 835 mm x 880 mm. Mechanical controls ensure ease of use, and the engine is certified to meet IMO Tier 2 emissions standards, making it a reliable and environmentally compliant choice for marine applications.

ENGINE SPECIFICATIONS

Rated Output              Rated Speed

The 6LY2M-WST engine is a powerful solution with a rated output of 277 kW (376 mhp) and a rated speed of 3200 rpm, providing exceptional performance for various applications. With a displacement of 5.813 L (354 cu. in) and six cylinders, this engine combines efficiency and strength. Its direct injection system and in-line pump ensure optimized fuel combustion, while the turbocharged and intercooled aspiration boosts performance. The engine features a 12V 80A alternator and has a dry weight of 535 kg (1179 lbs.), offering a balanced combination of power and compactness. Measuring 1412 mm x 835 mm x 880 mm, it is designed with mechanical controls and adheres to the IMO Tier 2 certification, meeting stringent international marine standards for emissions and performance.

ENGINE SPECIFICATIONS

Rated Output              Rated Speed

277 kW / 376 mhp            3200 rpm

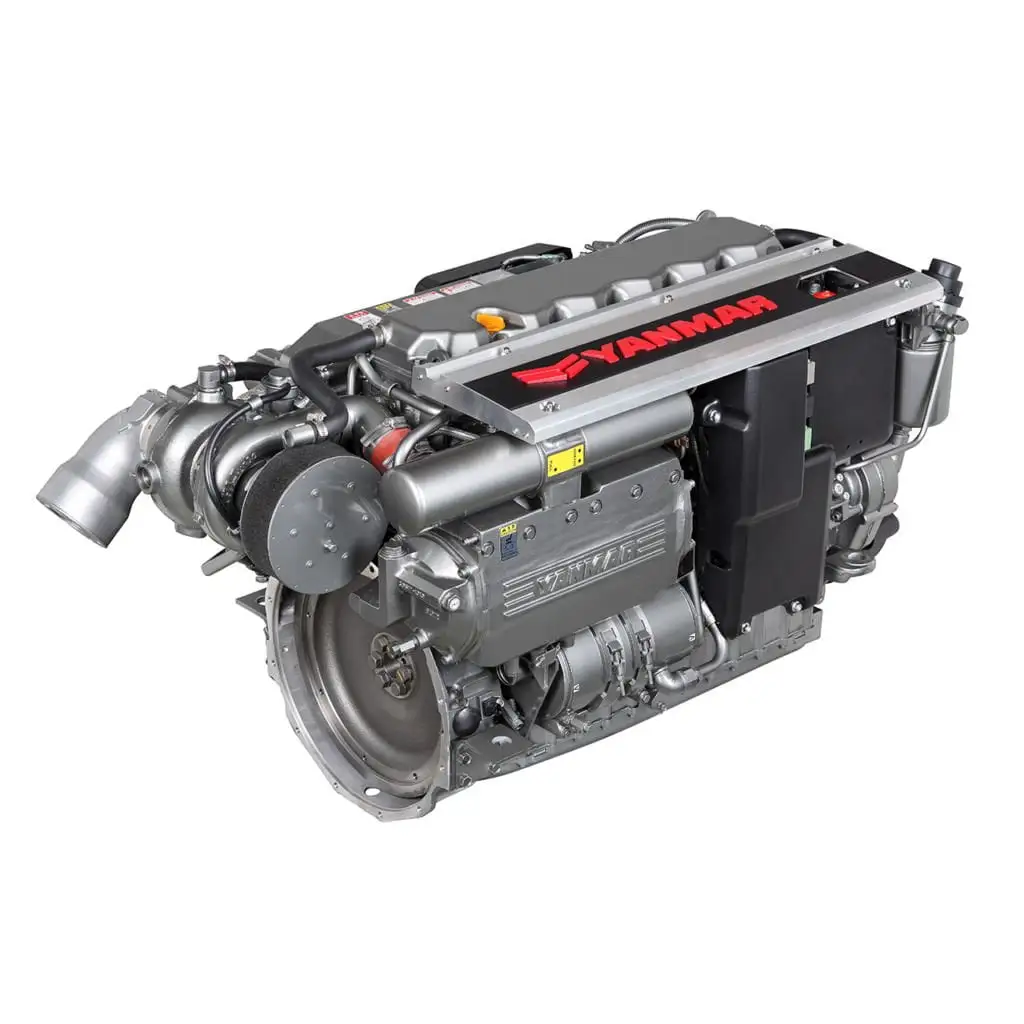

The 6LY Series engines (400 and 440 models) are in-line, 4-stroke, vertical, water-cooled diesel engines, offering outputs of 294 kW (400 mhp) and 324 kW (440 mhp) at 3300 rpm. With a 5.813 L displacement and a bore and stroke of 106 mm x 110 mm, these engines feature turbocharging and intercooling for optimized performance. The direct injection system utilizes a Denso common rail, and electronic engine management controls the engine's functions. Cooling is provided by fresh water and seawater pumps, while lubrication comes from an enclosed, forced system. Weighing 585 kg (1290 lbs) and measuring 1440 x 748.5 x 773.8 mm, the engine operates counterclockwise when viewed from the stern. It meets stringent emission standards, including EU RCD 2, IMO/GL, EPA Tier 3, and EPA-C, ensuring compliance with international regulations.

ENGINE SPECIFICATIONS

Rated Output                                                 Rated Speed

294 kW - 324 kW / 400 mhp - 440 mhp           3300 rpm

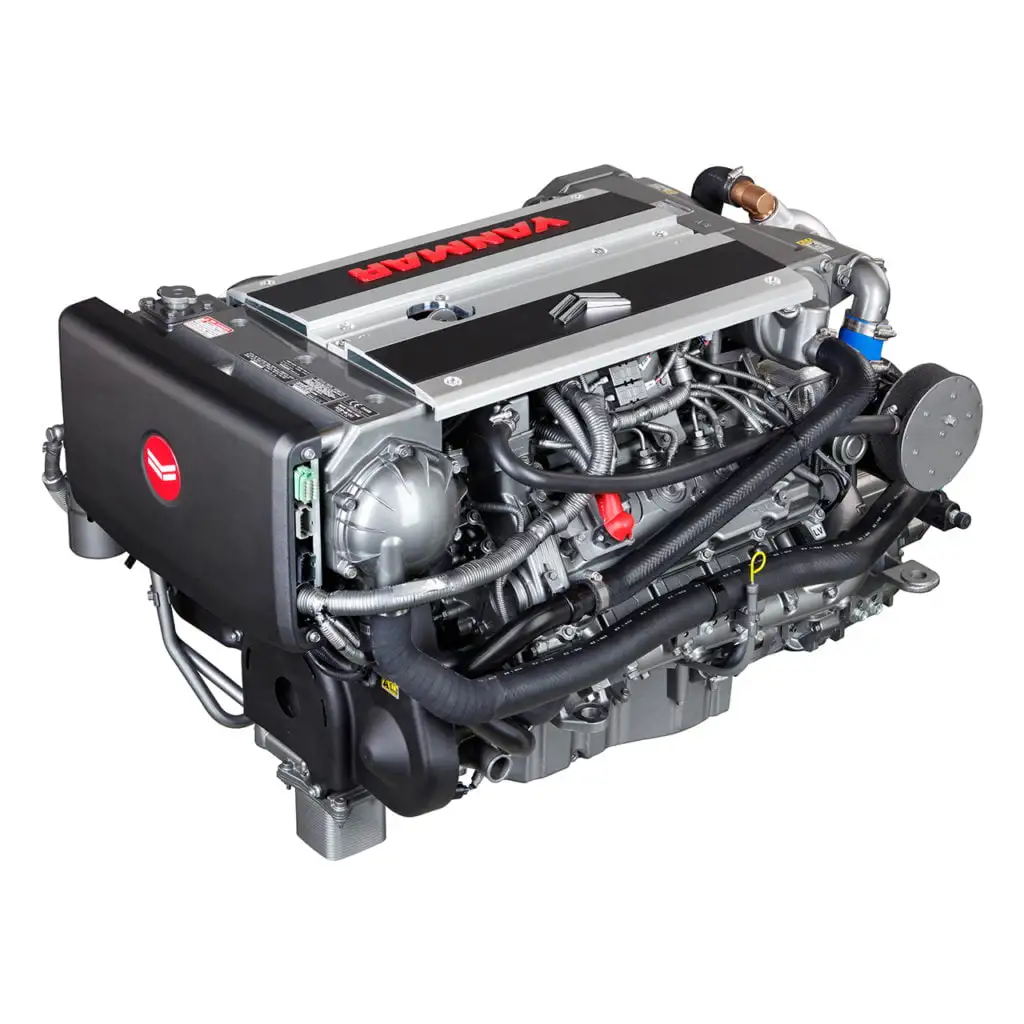

8LV Series

The 8LV Series engines (320Z, 350Z, 370Z) are V8-90º, 4-stroke, water-cooled diesel engines, offering varying power outputs: 235 kW (320 mhp), 257 kW (350 mhp), and 272 kW (370 mhp) at 3800 rpm. With a displacement of 4.46 L and an 86 x 96 mm bore and stroke, these engines feature twin-turbocharging and intercooling for enhanced performance. The direct injection system uses a Denso common rail, and the engine management is electronic. Cooling is handled by both fresh water and seawater pumps, while lubrication is provided by an enclosed, forced system. The engine weighs 435 kg (959 lbs), has dimensions of 1198 x 1043 x 886 mm, and operates counterclockwise when viewed from the stern. It meets multiple emissions standards, including EU RCD 2, IMO, EMC, and US EPA Tier 3, ensuring top-tier performance and compliance.

ENGINE SPECIFICATIONS

Rated Output                                                 Rated Speed
