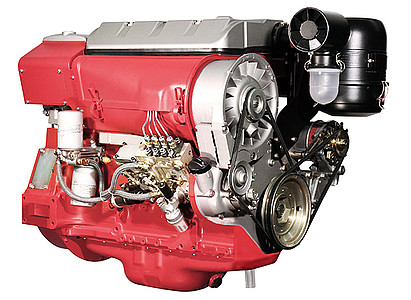

The D 914 L4 engine, part of the D 914 L3, D 914 L4, and D 914 L5 series, features a robust four-cylinder configuration with a 102 mm bore and 132 mm stroke (4.0 x 5.2 in), offering a displacement of 4.3 liters. Designed for efficiency, the engine operates at nominal speeds ranging from 2000 to 2300 rpm, delivering a power output of 58 kW (78 hp) at 2300 rpm. With a maximum torque of 273 Nm (201.4 lb/ft) at 1500 rpm, the D 914 L4 ensures reliable performance and efficiency, making it an ideal choice for industrial and agricultural applications.

ENGINE SPECIFICATIONS

Maximum Power   MAXIMUM TORQUE   EMISSIONS

78 HP   273 Nm at 1500 RPM  EU Stage IIIA / US EPA Tier 3

NEW GENUINE / REMAN

The Deutz D 914 L5 is 5-cylinder, high-performance diesel engine designed for medium-duty applications. Delivering 72.5 kW (97.2 hp) at 2300 RPM and a maximum torque of 337 Nm (248.6 lb-ft), they offer exceptional reliability and efficiency. With a nominal speed range of 2000 to 2300 RPM, this engine is ideal for industries such as agriculture, construction, and stationary power generation, ensuring durability and optimal performance under demanding conditions.

ENGINE SPECIFICATIONS

Maximum Power   MAXIMUM TORQUE   EMISSIONS

97.2 HP  337 Nm at 2300 RPM  EU IIIA, EU II, US T2, and US T3

NEW GENUINE / REMAN

The TCD 2.2/2.9 engine is a high-performance, 4-cylinder power unit engineered for optimal reliability and efficiency in demanding industrial applications. With a bore of 92 mm and a stroke of 110 mm, it delivers a total displacement of 2.9 liters. This engine is designed to operate at a maximum nominal speed of 2,600 rpm, providing a power output of 55.4 kW at this speed. It also offers a peak torque of 260 Nm, available at 1,800 rpm, ensuring strong performance across a range of operational conditions. The TCD 2.2/2.9 complies with the latest global emission standards, including EU V, US T4f, and EU IIIB

ENGINE SPECIFICATIONS

MAXIMUM POWER   MAXIMUM TORQUE   EMISSIONS

75 HP   260 Nm at 1800 RPM    EU Stage IIIB and V / US EPA

NEW GENUINE / REMAN

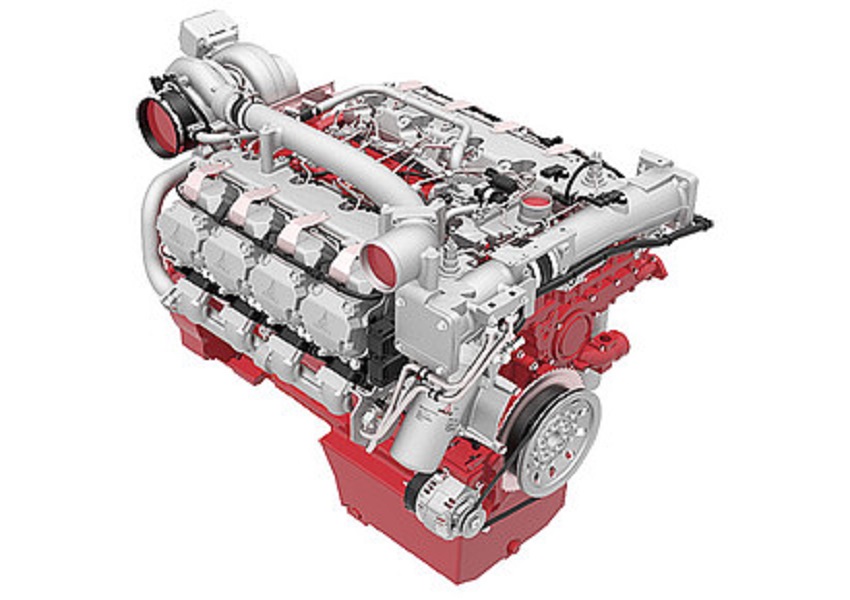

The TCD 16.0 V8 engine is a high-performance, 8-cylinder power unit designed to deliver exceptional reliability and efficiency for heavy-duty industrial applications. With a bore of 132 mm and a stroke of 145 mm. Operating at a maximum nominal speed of 2,100 rpm, it provides an impressive power output of 520 kW, ensuring powerful performance in demanding operational environments. The TCD 16.0 V8 engine also meets stringent global emission standards, including EU Stage V / US EPA Tier 4/CN 44.

ENGINE SPECIFICATIONS

MAXIMUM POWER MAXIMUM TORQUE EMISSIONS

697 HP  2890 Nm at 1400 RPM   EU Stage V / US EPA Tier 4/CN 44

NEW GENUINE / REMAN

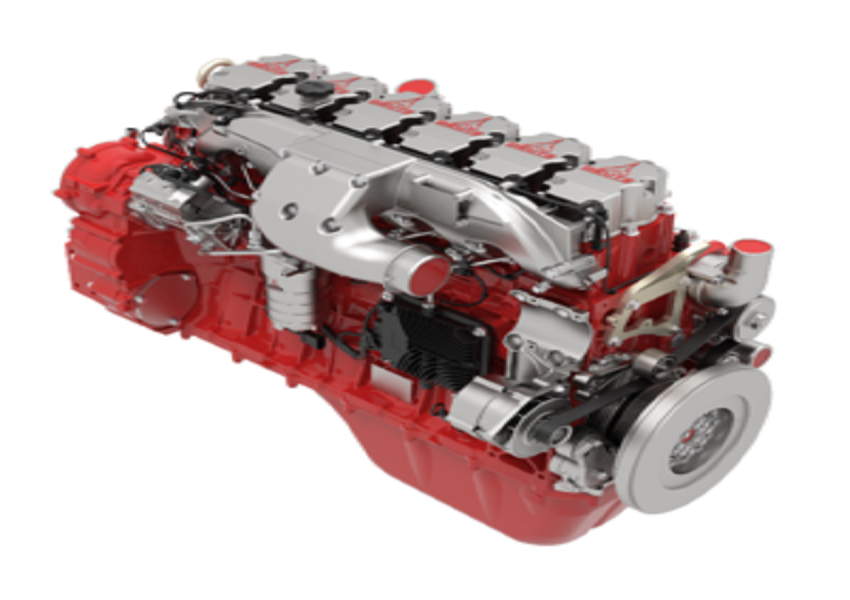

The TCD 13.5 L6 engine is a high-performance, 6-cylinder power unit, engineered to meet the demands of the most challenging industrial applications. With a bore of 135 mm and a stroke of 157 mm. This engine delivers a robust power output of 454 kW at 1,700 rpm, with a peak torque of 2,757 Nm at 1,100 rpm, ensuring exceptional power delivery and operational efficiency in demanding environments. Designed with compliance to the latest global emission standards, including CN IV, EU IIIA, EU V, and US T4f, the TCD 13.5 L6

ENGINE SPECIFICATIONS

MAXIMUM POWER  MAXIMUM TORQUE  EMISSIONS

609 HP 2757 Nm at 1100 RPM  EU V, US T4, CN 4, EU III A

NEW GENUINE / REMAN

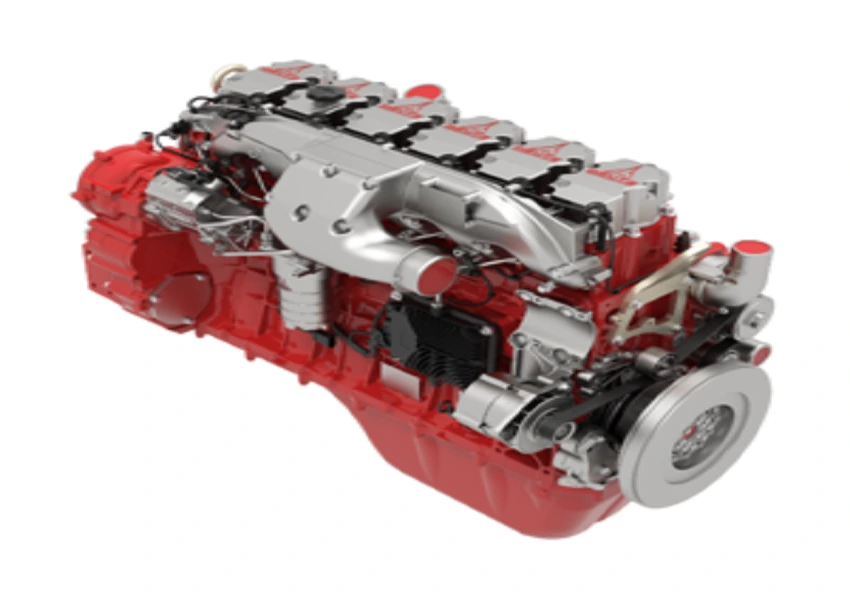

The TCD 12.0 L6 engine is a high-performance, 6-cylinder power unit designed to meet the rigorous demands of industrial applications. Featuring a bore of 130 mm and a stroke of 150 mm. It delivers an impressive power output of 404 kW at 1,700 rpm, ensuring reliable performance in heavy-duty operations. The engine produces a peak torque of 2,505 Nm at 1,200 rpm, providing exceptional power and efficiency even under the most challenging conditions. In addition, the TCD 12.0 L6 complies with stringent global emission standards, including CN IV, EU IIIA, EU V, and US T4f, ensuring both outstanding performance and minimal environmental impact.

ENGINE SPECIFICATIONS

MAXIMUM POWER   MAXIMUM TORQUE   EMISSIONS

525HP 2505 Nm at 1200 RPM  EU V, US T4, CN 4, EU III A

NEW GENUINE / REMAN

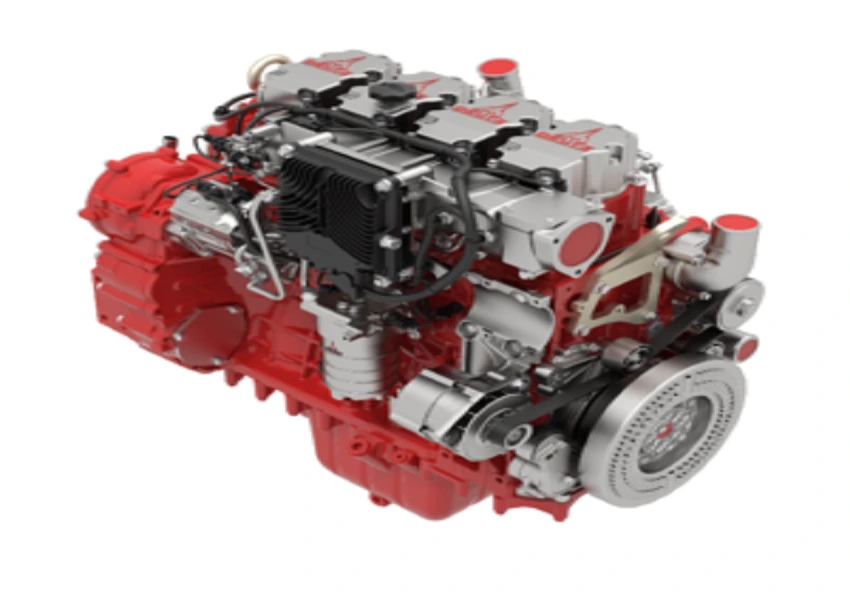

The TCD 9.0 L4 engine is a robust, high-performance 4-cylinder power unit. With a bore of 135 mm and a stroke of 157 mm, It is designed to operate at a maximum nominal speed of 2,100 rpm, delivering a power output of 304 kW at 1,700 rpm. The engine’s peak torque of 1,710 Nm, available at 1,200 rpm, ensures exceptional power delivery and operational efficiency under the most strenuous conditions. Moreover, the TCD 9.0 L4 complies with a wide range of global emission standards, including CN IV, EU IIIA, EU V, and US T4f.

ENGINE SPECIFICATIONS

MAXIMUM POWER     MAXIMUM TORQUE     EMISSIONS

413 HP 1710 Nm at 1200 RPM   EU V, US T4, CN 4, EU III A

NEW GENUINE / REMAN

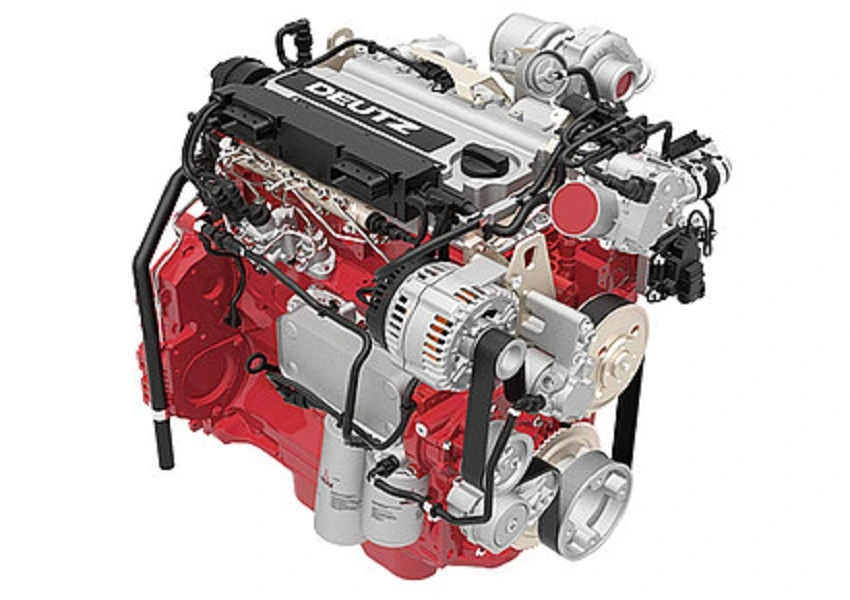

The TCD 4.1 L4 engine is a high-performance 4 cylinder power unit designed for demanding industrial and commercial applications. Featuring a bore of 101 mm and a stroke of 126 mm operates at a maximum nominal speed of 2,300 rpm, delivering a power output of 115 kW at this speed. With a peak torque of 610 Nm available at 1,600 rpm, the TCD 4.1 L4 ensures exceptional power delivery and operational efficiency across a range of conditions. Additionally, this engine complies with the latest emission standards, including EU V, US T4f, and EU IV, guaranteeing both outstanding performance and minimal environmental impact.

ENGINE SPECIFICATIONS

MAXIMUM POWER    MAXIMUM TORQUE        EMISSIONS

154 HP  610 Nm at 1600 RPM  EU Stage V / US EPA Tier 4

NEW GENUINE / REMAN

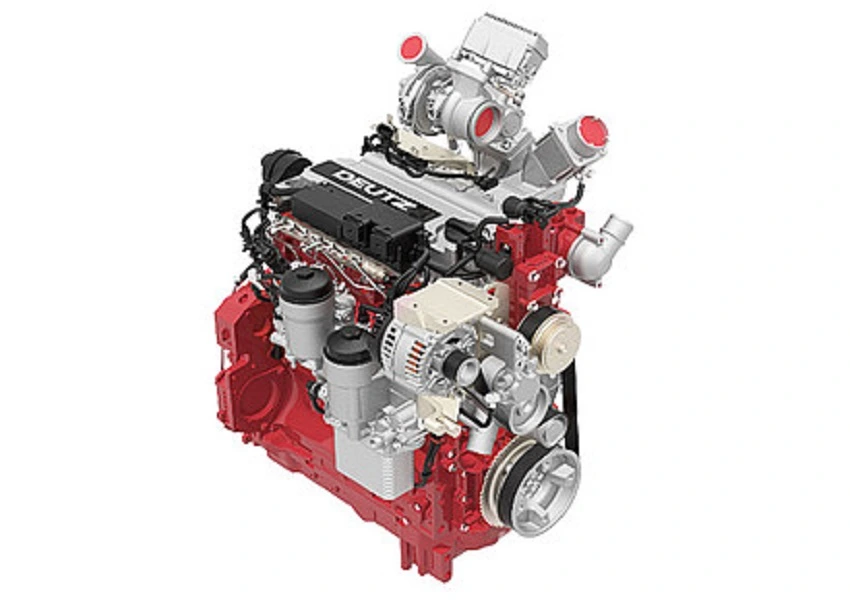

The TCD 4.1 L4 (Agri) engine is a high-performance, 4-cylinder power unit specifically designed for agricultural applications. With a bore of 101 mm and a stroke of 126 mm It operates at a maximum nominal speed of 2,100 rpm, delivering a power output of 120 kW at this speed. The engine’s performance is further enhanced by its impressive peak torque of 699 Nm, available at 1,600 rpm, ensuring superior efficiency and reliability in demanding agricultural operations. Additionally, the TCD 4.1 L4 (Agri) complies with the latest emission standards, including EU V, US T4f, and EU IV, ensuring both exceptional performance and environmental sustainability.

ENGINE SPECIFICATIONS

MAXIMUM POWER       MAXIMUM TORQUE       EMISSIONS

160 HP   699Nm at 1600 RPM   EU Stage V / US EPA Tier 4

NEW GENUINE / REMAN

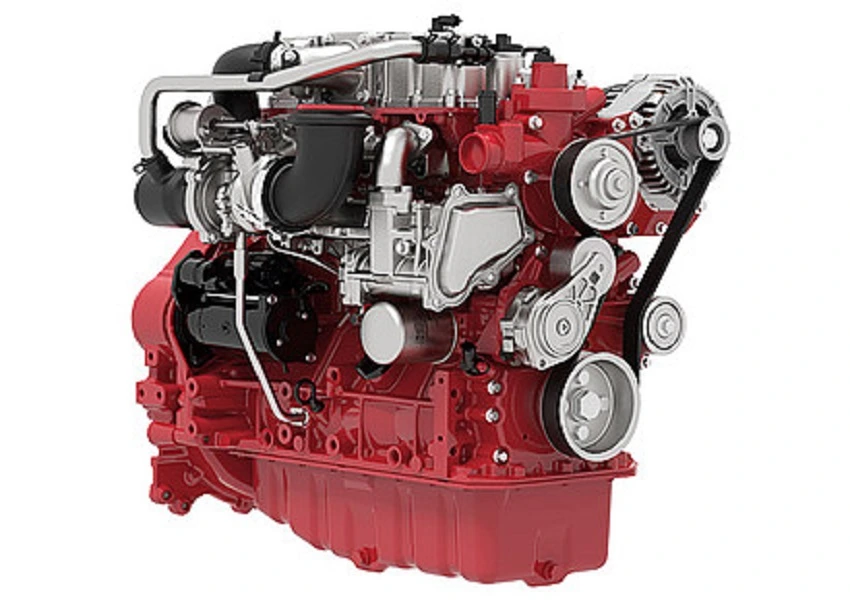

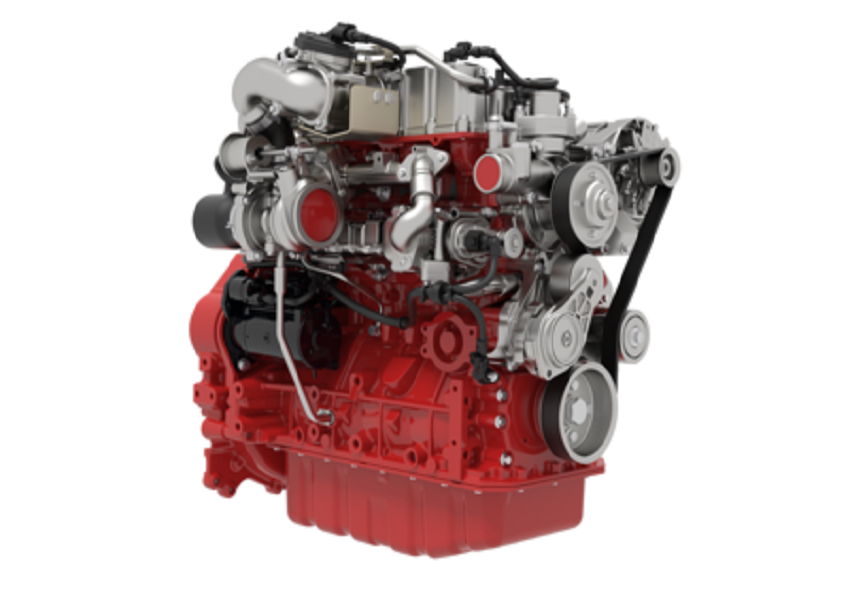

The TCD 2.2/2.9 engine is a high-performance, 4 cylinder power unit engineered for exceptional reliability and efficiency across a wide range of industrial applications. Featuring a bore of 92 mm and a stroke of 110 mm It is capable of achieving a maximum nominal speed of 2,600 rpm, delivering a power output of 36.4 kW at this speed. The engine’s performance is further highlighted by its maximum torque of 147 Nm, which is available at 1,600 rpm. Designed to meet rigorous environmental standards, the TCD 2.2/2.9 complies with the EU V, US T4f, and EU IIIB emission regulations, ensuring both high performance and low environmental impact.

ENGINE SPECIFICATIONS

MAXIMUM POWER   MAXIMUM TORQUE   EMISSIONS

50 HP     147 Nm at 1600 RPM   EU Stage IIIB and V / US EPA Tier 4

NEW GENUINE / REMAN

The BF4M914 engine features 4 cylinders, with a bore/stroke ratio of 102/132 mm. It operates with a maximum nominal speed of 2500 rpm and delivers a power output of 75 at 2500 rpm. The engine generates a maximum torque of 355 Nm at 1600 rpm, making it a robust choice for applications that require reliable power and torque.

ENGINE SPECIFICATIONS

MAXIMUM POWER   MAXIMUM TORQUE     EMISSIONS

100.5 HP  355 Nm at 1600 RPM  EU II, US T2

NEW GENUINE / REMAN

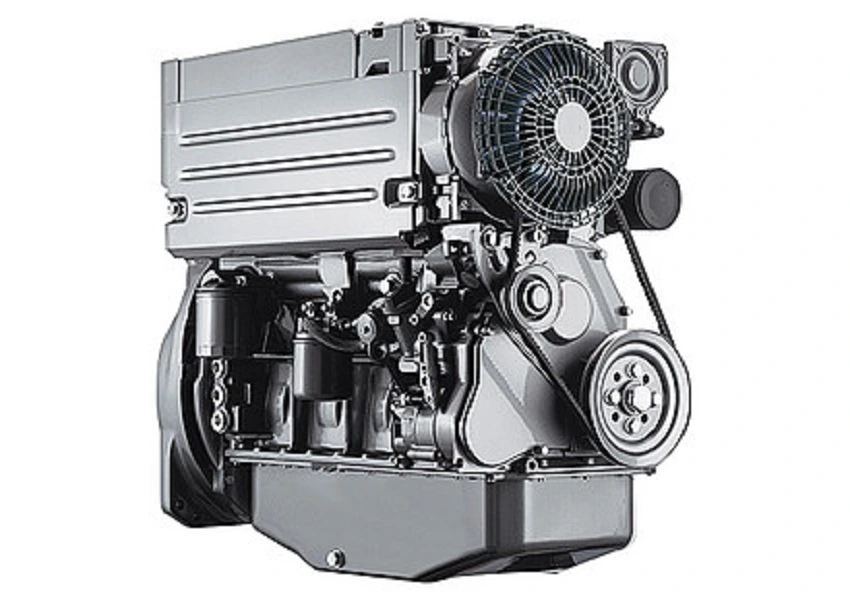

The BF4L2011 engine features 4 cylinders, with a bore/stroke ratio of 94/112 mm. It operates with a maximum nominal speed of 2800 rpm and delivers a power output of 85.1 KW at 2800 rpm. The engine generates a maximum torque of 230 Nm at 1600 rpm, making it a robust choice for applications that require reliable power and torque.

ENGINE SPECIFICATIONS

MAXIMUM POWER   MAXIMUM TORQUE       EMISSIONS

77.8 HP  230 Nm at 1600 RPM   EU II, US T2

NEW GENUINE / REMAN

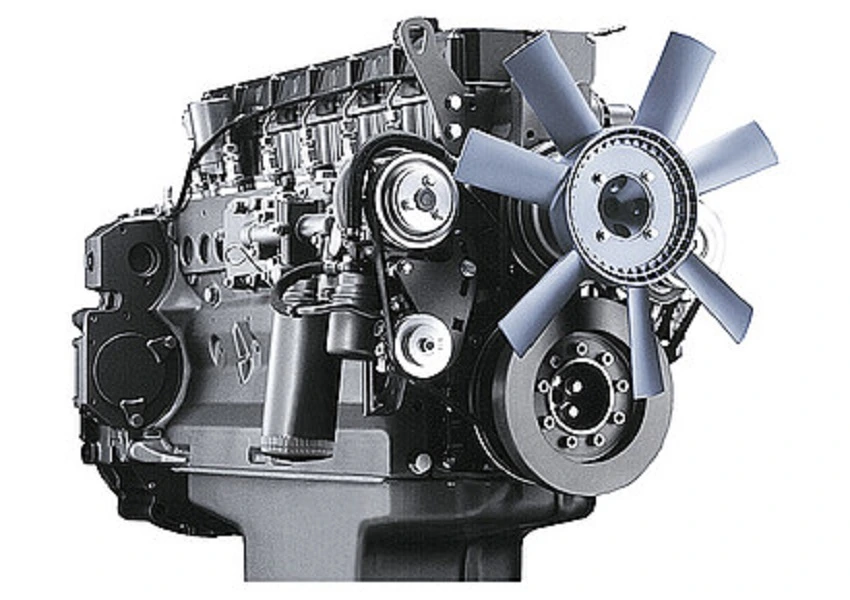

The BF4M1013FC engine features 4 cylinders, with a bore/stroke ratio of 108/130 mm. It operates with a maximum nominal speed of 2300 rpm and delivers a power output of 118 KW at 2300 rpm. The engine generates a maximum torque of 700 Nm at 1400 rpm, making it a robust choice for applications that require reliable power and torque.

ENGINE SPECIFICATIONS

MAXIMUM POWER      MAXIMUM TORQUE       EMISSIONS

158.1 HP    700 Nm at 1400 RPM       EU II, US T2

NEW GENUINE / REMAN

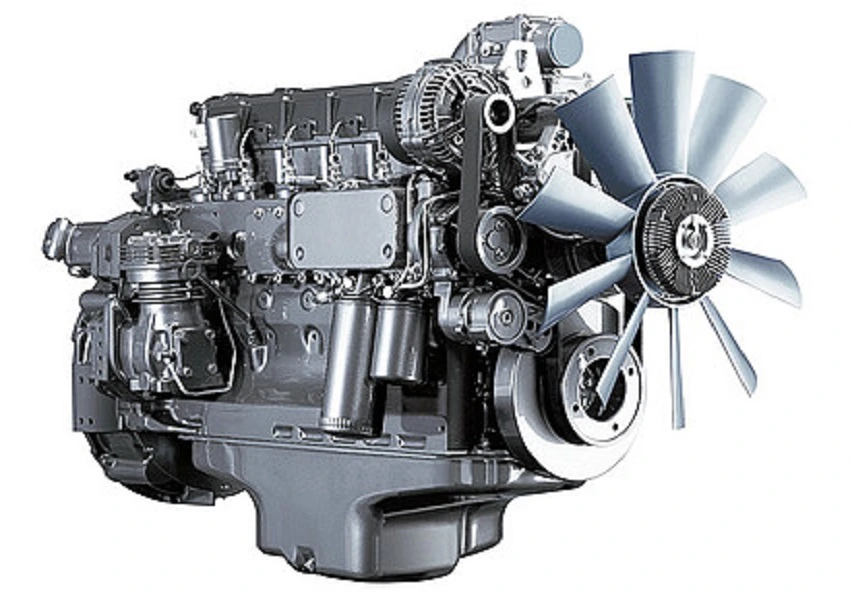

The BF4M2012C engine features 4 cylinders, with a bore/stroke ratio of 101/126 mm. It operates with a maximum nominal speed of 2500 rpm and delivers a power output of 103 KW at 2500 rpm. The engine generates a maximum torque of 493 Nm at 1500 rpm, making it a robust choice for applications that require reliable power and torque.

ENGINE SPECIFICATIONS

MAXIMUM POWER     MAXIMUM TORQUE       EMISSIONS

138 HP    493 Nm at 1500 RPM        EU II, US T2

NEW GENUINE / REMAN

The BF6L914 engine features 6 cylinders, with a bore/stroke ratio of 102/132 mm. It operates with a maximum nominal speed of 2500 rpm and delivers a power output of 115 KW at 2500 rpm. The engine generates a maximum torque of 550 Nm at 1600 rpm, making it a robust choice for applications that require reliable power and torque.

ENGINE SPECIFICATIONS

MAXIMUM POWER   MAXIMUM TORQUE     EMISSIONS

154 HP      550 Nm at 1600 RPM     EU II, US T2

NEW GENUINE / REMAN
