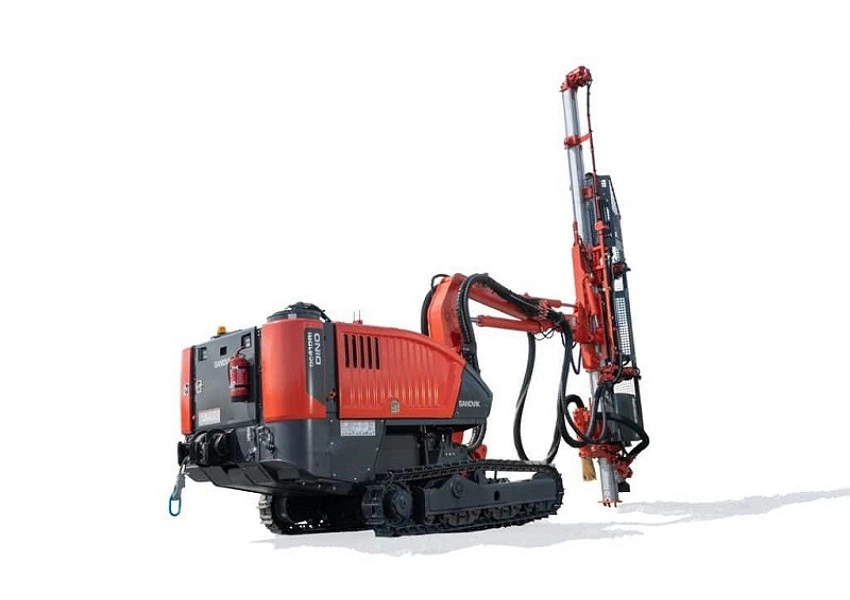

The Dino DC410R is a compact and versatile surface top hammer drill rig designed for efficient drilling in a wide range of applications. Capable of drilling hole diameters between 51.0 mm and 76.0 mm (2.0 – 3.0 in.), it features a powerful 14 kW rock drill and supports drill rod diameters of 32, 35, and 39 mm (1.26, 1.38, and 1.54 in.). The rig is equipped with a high-capacity flushing air system delivering 3.5 m³/min at pressures up to 8 bar, ensuring optimal hole cleaning and drilling performance. Powered by a reliable Volvo TAD570VE Tier 3 engine, delivering 105 kW (141 hp), the Dino DC410R offers strong productivity and mobility in challenging terrain.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

141 hp                        3.5 m³/min up to 8 bar               51.0 - 76.0 mm

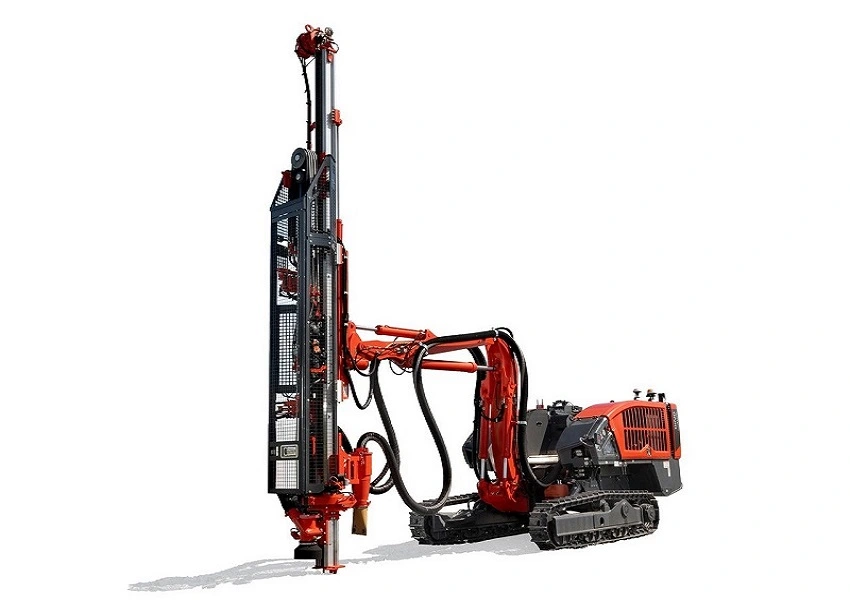

The Dino DC420Ri is a high-performance surface top hammer drill rig built for precision and productivity in demanding environments. With a hole diameter range of 51.0 mm to 76.0 mm (2.0 – 3.0 in.), it is equipped with a 14 kW rock drill and accommodates drill rod diameters of 32, 35, and 39 mm (1.26, 1.38, and 1.54 in.). Its flushing air system delivers 3.5 m³/min at pressures up to 8 bar, ensuring effective hole cleaning and drilling efficiency. The rig is powered by a Volvo Penta TAD550VE Tier 3 engine, providing the reliability and performance needed for continuous operation in rugged conditions.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

141 hp                        3.5 m³/min up to 8 bar               51.0 - 76.0 mm

The Pantera DP1110i is a robust and intelligent surface top hammer drill rig engineered for large-scale production drilling. Designed to handle hole diameters from 89.0 mm to 140.0 mm (3.5 – 5.5 in.), it features a high-performance rock drill with power ratings between 25 and 35 kW, ensuring excellent penetration rates in tough rock conditions. The rig delivers a powerful flushing air capacity of 11 m³/min at up to 10 bar, enhancing hole cleaning and drilling efficiency. Driven by a Caterpillar C9.3B engine producing 250 kW (335 hp), the DP1110i combines power, automation, and productivity to meet the demands of modern mining and quarrying operations.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

335 hp                        11 m³/min up to 10 bar               89.0 - 140.0 mm

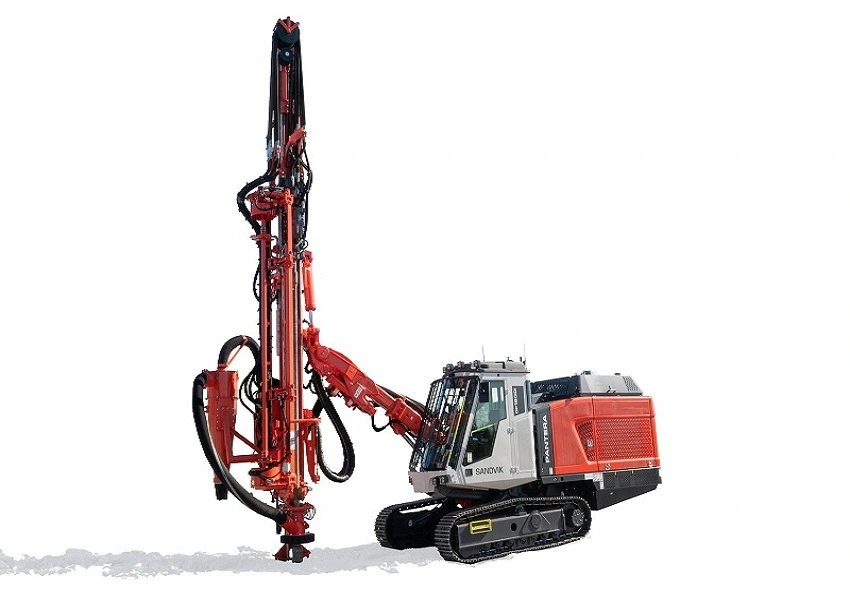

The Pantera DP1510i is a high-capacity surface top hammer drill rig designed for productivity and precision in large-scale drilling operations. It supports a wide hole diameter range from 89.0 mm to 152.0 mm (3.5 – 6.0 in.), powered by a robust rock drill delivering between 35 and 40 kW. With a flushing air capacity of 14 m³/min at up to 10 bar, the rig ensures efficient hole cleaning even in challenging ground conditions. At its core is a dependable Caterpillar C9.3B Tier 3 engine, producing 280 kW (375 hp) at 1,800 rpm, offering the performance and durability needed for demanding quarrying and mining environments.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

375 hp                        14 m³/min up to 10 bar               89.0 - 152.0 mm

The Pantera DP1610i is the most powerful model in Sandvik’s surface top hammer drill rig lineup, purpose-built for large-hole drilling in high-production applications. It supports hole diameters from 102.0 mm to 178.0 mm (4.0 – 7.0 in.) and features a robust 49 kW rock drill, delivering superior penetration rates in challenging rock formations. With a high-capacity flushing system of 14 m³/min at up to 10 bar, it ensures efficient debris removal and consistent drilling performance. Notably, the DP1610i offers increased drilling capability without expanding the rig’s physical footprint making it an efficient solution where space and mobility matter. Powered by a Caterpillar C9.3B Stage V engine producing 280 kW (375 hp) at 1,800 rpm, the rig combines power, productivity, and environmental compliance in a compact, high-performance package.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

141 hp                        14 m³/min up to 10 bar               102.0 - 178.0 mm

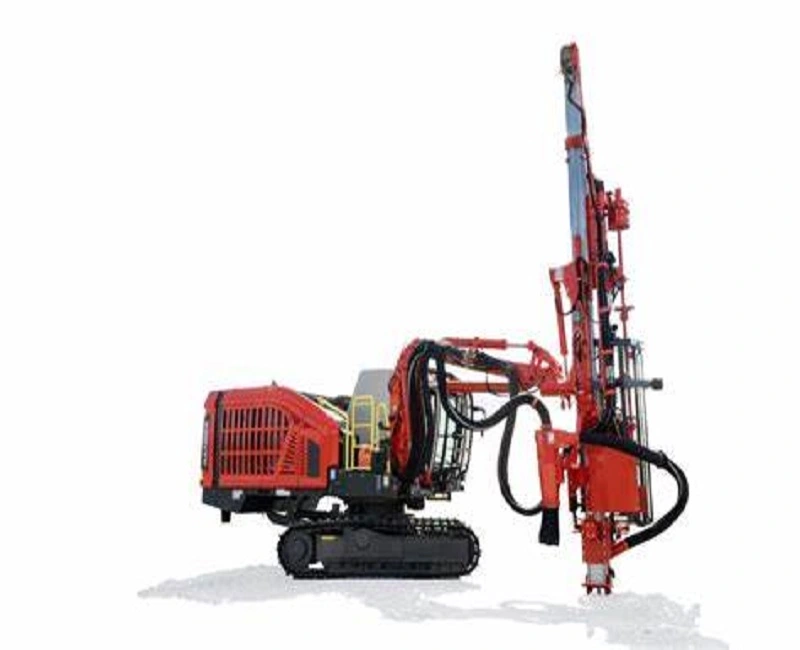

The Ranger DX600 is a versatile and mobile surface top hammer drill rig designed for efficient drilling in construction, quarrying, and mining applications. With a hole diameter range of 64.0 mm to 102.0 mm (2.5 – 4.0 in.), it is equipped with an 18 kW rock drill, delivering reliable performance across a variety of rock conditions. The rig features a flushing air capacity of 6.2 m³/min at up to 10 bar, ensuring clean and effective drilling. Powered by a Caterpillar C7.1 Tier 3 engine generating 168 kW (225 hp) at 1,800 rpm, the DX600 combines power and fuel efficiency with excellent mobility and reach, making it ideal for uneven terrain and confined sites.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

225 hp                        6.2 m³/min up to 10 bar               64.0 - 102.0 mm

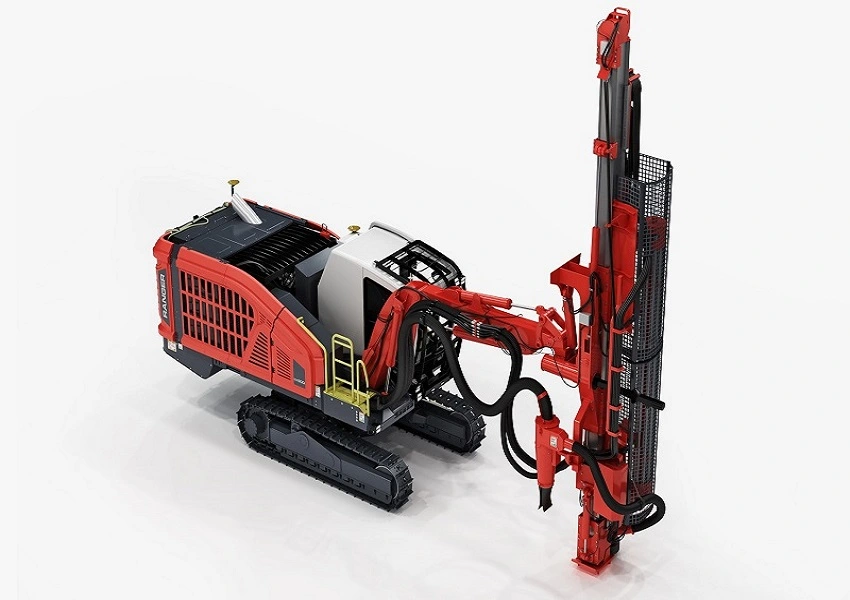

The Ranger DX700 is designed to drill hole diameters ranging from 76.0 mm to 115.0 mm (3.0 – 4.5 in.), it is equipped with a 20 kW rock drill and supports drill rod diameters of 45 or 51 mm (1.75 or 2 in.), delivering reliable and efficient performance across varying ground conditions. Its robust flushing system provides 8.1 m³/min of air at up to 10 bar, ensuring optimal hole cleaning. Powered by a Caterpillar C7.1 Tier 3 engine producing 168 kW (225 hp) at 1,800 rpm, the DX700 combines power, mobility, and versatility making it an ideal solution for challenging terrain and high-efficiency surface drilling.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

225 hp                        8.1 m³/min up to 10 bar               76.0 - 115.0 mm

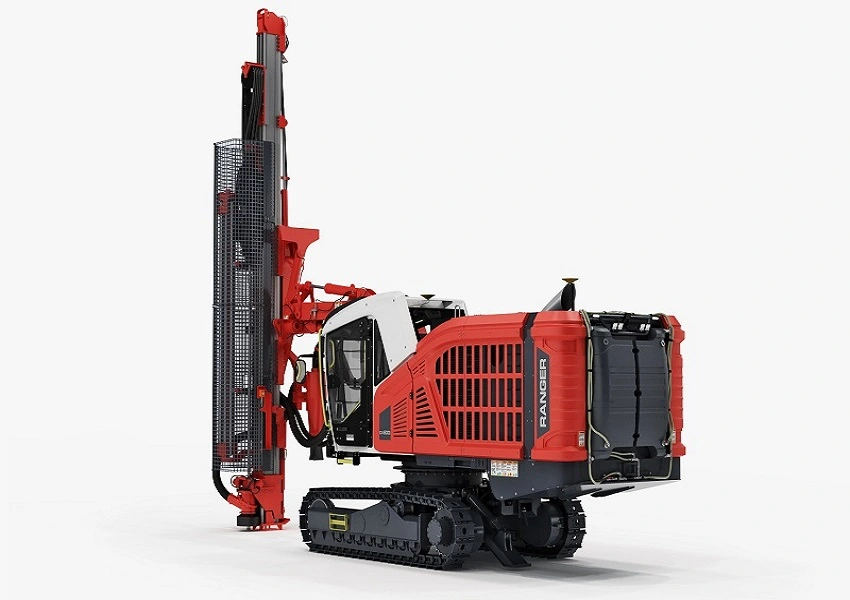

The Ranger DX800 is a powerful and reliable surface top hammer drill rig designed for high-efficiency drilling in quarrying, construction, and mining environments. Capable of drilling hole diameters from 76.0 mm to 127.0 mm (3.0 – 5.0 in.), it is equipped with a rock drill delivering between 21 and 23 kW of power, enabling excellent penetration in tough rock conditions. Its flushing system provides 8.1 m³/min of air at pressures up to 10 bar, ensuring clean and consistent drilling performance. Driven by a Caterpillar C7.1 Tier 3 engine producing 168 kW (225 hp) at 1,800 rpm, the DX800 offers an optimal balance of power, fuel efficiency, and mobility—making it an ideal choice for demanding surface drilling operations.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

225 hp                        8.1 m³/min up to 10 bar               76.0 - 127.0 mm

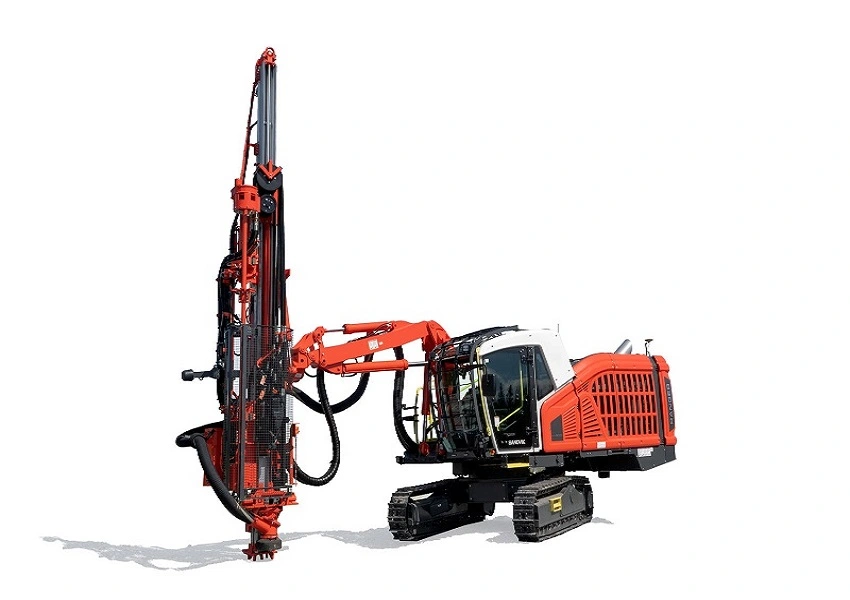

The Ranger DX810i is an advanced and intelligent surface top hammer drill rig engineered for precise and efficient drilling across a broad range of applications. Covering hole diameters from 64.0 mm to 127.0 mm (2.5 – 5.0 in.), it features a high-performance rock drill with a power output between 21 and 25 kW, ensuring excellent penetration rates and productivity. The rig’s flushing system delivers 8.5 m³/min at up to 10 bar, optimizing hole cleaning for consistent drilling results. Powered by a Volvo TAD851VE Tier 3 engine, the DX810i combines fuel efficiency, smart automation features, and mobility to deliver maximum uptime and performance in challenging surface conditions.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

248 hp                        8.5 m³/min up to 10 bar               64.0 - 127.0 mm

The Dino DC410R is a compact and versatile surface top hammer drill rig designed for efficient drilling in a wide range of applications. Capable of drilling hole diameters between 51.0 mm and 76.0 mm (2.0 – 3.0 in.), it features a powerful 14 kW rock drill and supports drill rod diameters of 32, 35, and 39 mm (1.26, 1.38, and 1.54 in.). The rig is equipped with a high-capacity flushing air system delivering 3.5 m³/min at pressures up to 8 bar, ensuring optimal hole cleaning and drilling performance. Powered by a reliable Volvo TAD570VE Tier 3 engine, delivering 105 kW (141 hp), the Dino DC410R offers strong productivity and mobility in challenging terrain.

EXCAVATOR SPECIFICATIONS

RATED POWER           FLUSHING AIR CAPACITY               HOLE DIAMETER

141 hp                        3.5 m³/min up to 8 bar               89.0 - 140.0 mm
