The JCB JS130 Hydraulic Excavator is a robust and versatile 13-ton class machine designed for efficient performance in a wide range of applications including general construction, utility work, landscaping, and site preparation. Powered by a fuel-efficient JCB EcoMAX Tier 4 Final diesel engine delivering 97 hp (72 kW), the JS130 offers excellent productivity with low operating costs and minimal emissions. Its advanced hydraulic system ensures smooth, precise control, while the reinforced undercarriage and durable boom structure enhance longevity even in tough conditions. With a maximum digging depth of over 18 feet and an operating weight of approximately 28,200 pounds, the JS130 delivers strong breakout force and reliable digging power in confined or open job sites alike.

EXCAVATOR SPECIFICATIONS
NET POWER    OPERATING WEIGHT   MAXIMUM DIGGING DEPTH
97hp                         28,200 lb                           18.2 ft

The JCB 140 NXT Hydraulic Excavator is a rugged and highly productive 14-ton tracked machine engineered for versatility across general construction, utilities, quarrying, and road repair projects. Powered by a fuel-efficient Cummins 4BT Tier 4 Final diesel engine delivering 100 hp (75 kW), it combines power with low fuel consumption. Its advanced regenerative load-sensing hydraulic system features selectable operating modes—including a high-output Power Plus mode for roughly 6% more digging performance, and auto-idle to conserve fuel during inactivity. Built with a reinforced boom, dipper, and heavy-duty undercarriage, the 140 NXT offers excellent machine stability, durability, and operator comfort in challenging environments. With a maximum digging depth exceeding 5.2 m (18 ft) and an operating weight around 14,320 kg, it is effective in both confined urban sites and heavy-duty industrial settings.

EXCAVATOR SPECIFICATIONS
NET POWER   OPERATING WEIGHT   MAXIMUM DIGGING DEPTH
100hp                       14,320 Kg                                     17.2 ft

The JCB 205 NXT Hydraulic Excavator is a robust 20-ton class machine designed for high productivity in construction, quarrying, and heavy excavation projects. It is equipped with a proven JCB ecoMAX 448 diesel engine producing 140 hp (104 kW), delivering superior fuel efficiency without the need for after-treatment. The machine features an advanced hydraulic system with 3 power modes and a Power+ mode for 8–10% higher output. With a reinforced X-type frame, heavy-duty undercarriage, and deep section boom and arm, the 205 NXT ensures long-term durability and excellent stability in the most demanding terrains. A spacious cabin with 7-inch digital display, air conditioning, and real-time fuel monitoring enhances operator productivity. Its deep digging capability and strong breakout forces make it ideal for both urban and remote heavy-duty job sites.

EXCAVATOR SPECIFICATIONS
NET POWER   OPERATING WEIGHT   MAXIMUM DIGGING DEPTH
140hp                      22,500 lb                           21.2 ft

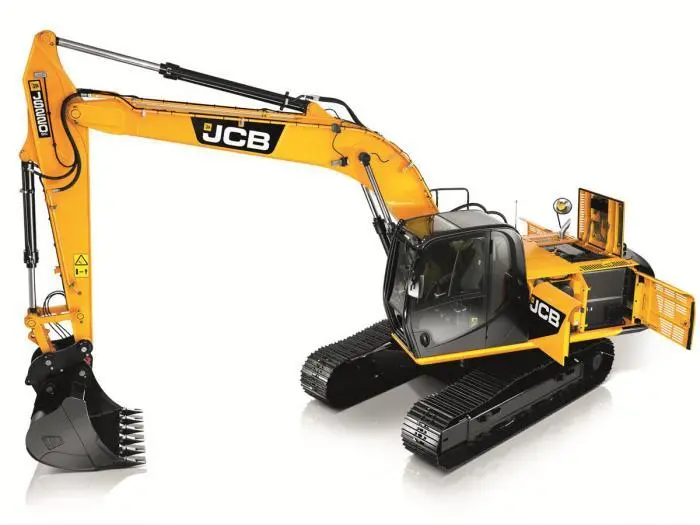

The JCB JS220 Hydraulic Excavator is a powerful and efficient 22 tonne tracked machine built around JCB’s EcoMAX/Diesel ax engine, delivering 172 hp (128 kW) with up to 10% improved fuel economy. Its advanced load-sensing hydraulic system features selectable power bands and regenerative circuits for faster cycles and lower consumption, plus an auto-idle mode to conserve fuel. The excavator’s robust undercarriage with a fully welded X-frame, reinforced boom/dipper, and rigid upper structure delivers excellent stability and durability. Operator comfort is enhanced by a spacious cabin, 7″ multi-function display, excellent visibility, low vibration, and optional HVAC. With a max digging depth of up to 6.6 m (21.8 ft) depending on dipper, it’s ideal for heavy construction, quarrying, and utility applications. Serviceability is simplified with centralized filters and ground-level access.

EXCAVATOR SPECIFICATIONS
NET POWER    OPERATING WEIGHT      MAXIMUM DIGGING DEPTH
172hp                      48,500 lb                                  21.8 ft

The JCB JS305 Hydraulic Excavator is a powerful and efficient 22 tonne tracked machine built around JCB’s EcoMAX/Diesel ax engine, delivering 172 hp (128 kW) with up to 10% improved fuel economy. Its advanced load-sensing hydraulic system features selectable power bands and regenerative circuits for faster cycles and lower consumption, plus an auto-idle mode to conserve fuel. The excavator’s robust undercarriage with a fully welded X-frame, reinforced boom/dipper, and rigid upper structure delivers excellent stability and durability. Operator comfort is enhanced by a spacious cabin, 7″ multi-function display, excellent visibility, low vibration, and optional HVAC. With a max digging depth of up to 6.6 m (21.8 ft) depending on dipper, it’s ideal for heavy construction, quarrying, and utility applications. Serviceability is simplified with centralized filters and ground-level access.

EXCAVATOR SPECIFICATIONS
NET POWER    OPERATING WEIGHT   MAXIMUM DIGGING DEPTH
172hp                        48,500 lb                             21.8 ft

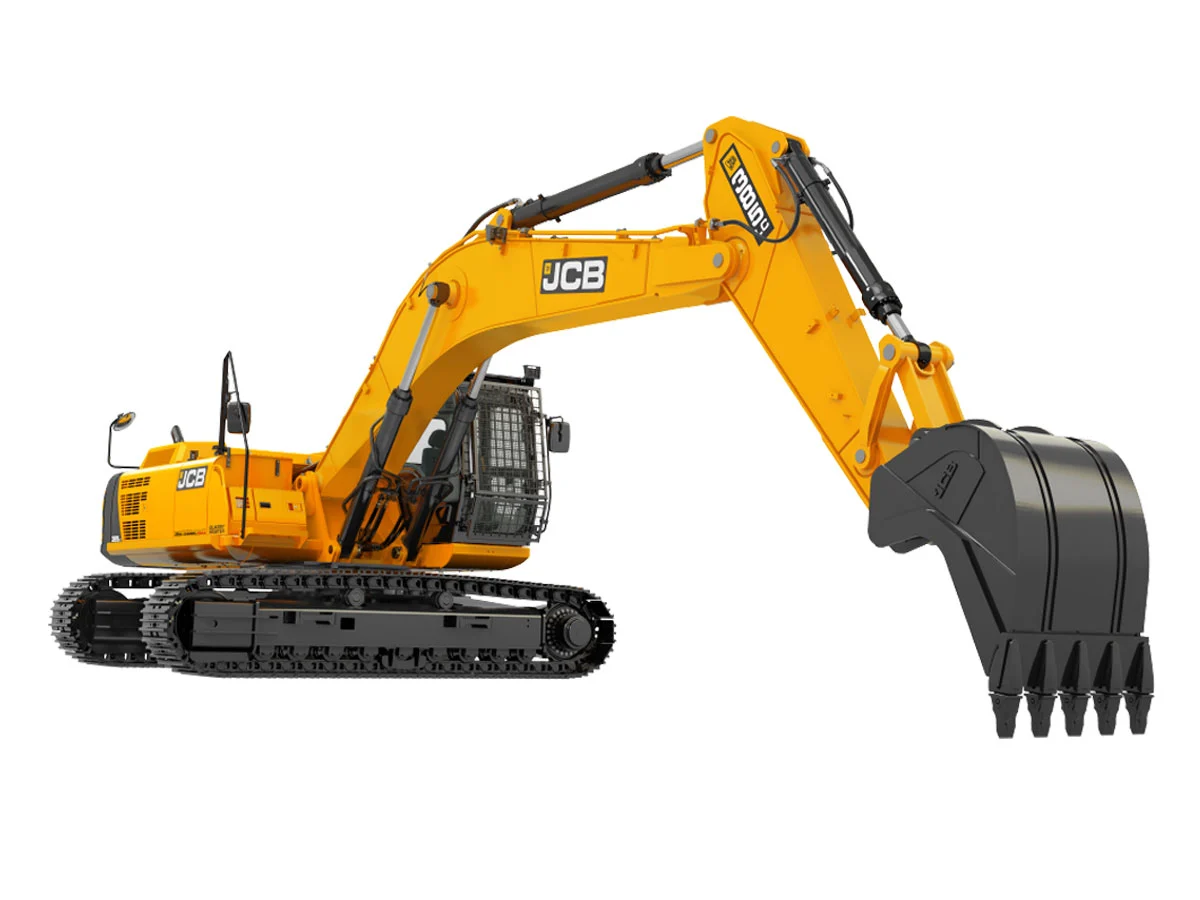

The JCB JS385LC HD Hydraulic Excavator is a heavy-duty 37.5-ton class machine engineered for maximum durability, efficiency, and performance in demanding construction, quarrying, mining, and civil engineering applications. It’s powered by a JCB Diesel ax 672 common rail turbocharged engine delivering 284 hp (212 kW) and 1,150 Nm torque at low rpm, paired with advanced Eco hydraulic systems, 3 lift modes, 4 digging modes, and a Power Boost function that increases hydraulic pressure by about 9% for enhanced digging and lifting performance. Built for rugged environments, it features a heavy-duty X frame undercarriage, reinforced boom and dipper arms, thick-track guides and rollers, and a reinforced idler area for exceptional reliability. Operator comfort is addressed with a six mount, air conditioned cab, large glazed panels for visibility, deluxe seating, and JCB’s Smart Control color monitor and Live Link telematics as standard. Maintenance is simplified with ground-level access to grouped filters, side-by-side coolers, and long service intervals—hydraulic filter changes every 1,000 h and hydraulic oil every 5,000 h. Equipped with hammer-ready piping and heavy-duty bucket options up to 2.3 m³, the JS385LC HD is built to tackle the toughest hard-rock and bulk excavation conditions.

EXCAVATOR SPECIFICATIONS
NET POWER     OPERATING WEIGHT    MAXIMUM DIGGING DEPTH
284hp                      38,000 kg                                     22.4 ft

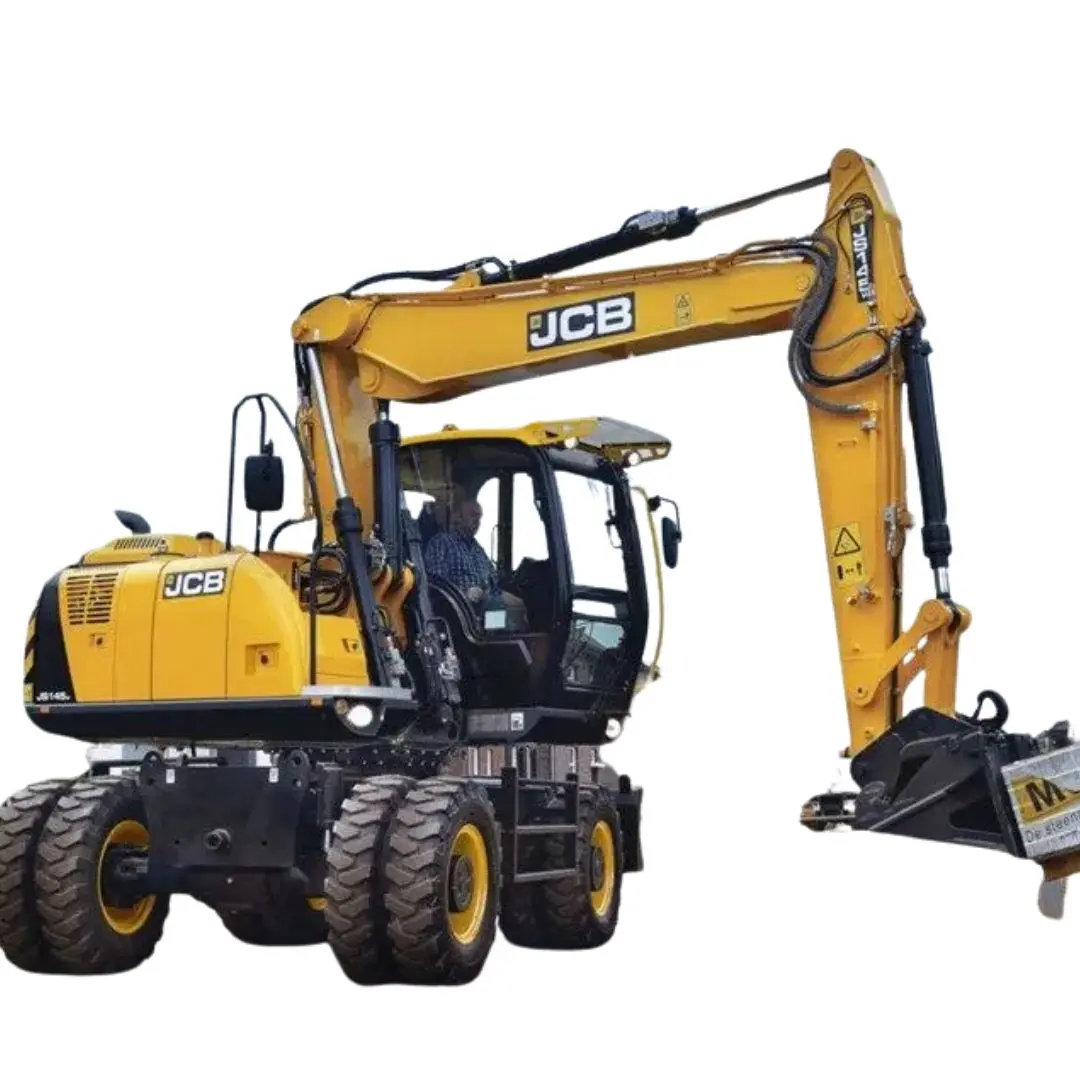

The JCB JS145W Wheeled Excavator is a versatile, mid size machine engineered for efficiency and durability across urban infrastructure, general construction, and utility work. Powered by a low emission 4.8 L JCB EcoMAX/DieselMax engine delivering approximately 109 hp (81 kW), its turbo intercooled design provides strong low end torque—about a 23% improvement over the previous model—while meeting Tier 3/Stage V standards. Its load sensing hydraulic system, equipped with variable flow piston pumps and a joystick mounted Power Boost, enables smooth simultaneous swing-and-travel movement and enhanced breakout performance (~82 kN). Constructed on a heavy-duty rigid upper frame and closed box-section revolving frame, with reinforced boom, dipper, axles, drives, and stabilisers, the JS145W is built for the toughest jobsite demands. Operator-focused features include a spacious cab with optional climate control, excellent visibility through a low bonnet and split windscreen, cushioned boom/dipper ends, and vibration-damping mounts. Serviceability is excellent: centrally located filters, gas-assisted bonnet access, single‐point greasing at ground level, 1,000 hour boom/dipper greasing, and 5,000 hour oil change intervals support minimal downtime.

EXCAVATOR SPECIFICATIONS
NET POWER    OPERATING WEIGHT    MAXIMUM DIGGING DEPTH
109hp                          16,960 kg                         18.7 ft

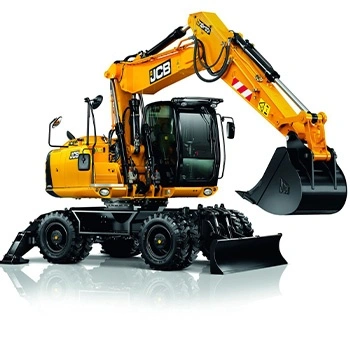

The JCB JS160W Wheeled Excavator is a durable and efficient 17-tonne class machine, ideal for road maintenance, utility work, and urban construction. Powered by a 4.8 L JCB DieselMax engine producing 130 hp (97 kW) and strong low-end torque, it features a Tier V compliant setup with auto idle and four selectable operating modes—Auto, Economy, Precision, and Lifting—allowing operators to match performance to the job. The load sensing hydraulic system delivers a 105 kN bucket tearout force and has a joystick mounted Power Boost for extra digging or lifting power.Built with heavy duty axles, stabilisers, a rigid upper frame, and a closed box section revolving frame, the JS160W is engineered for strength and resistance to impact. The operator's cabin emphasizes comfort and visibility, offering a 70/30 split windscreen, large glass roof window, cushioned boom/dipper ends, plus climate control and vibration damping mounts. Serviceability is also notable: gas assisted bonnets, ground level greasing points, 1,000 hour boom/dipper greasing, and 5,000 hour oil interval ensures minimal downtime.

EXCAVATOR SPECIFICATIONS
NET POWER    OPERATING WEIGHT   MAXIMUM DIGGING DEPTH
130hp                       17,440 kg                            18.9ft

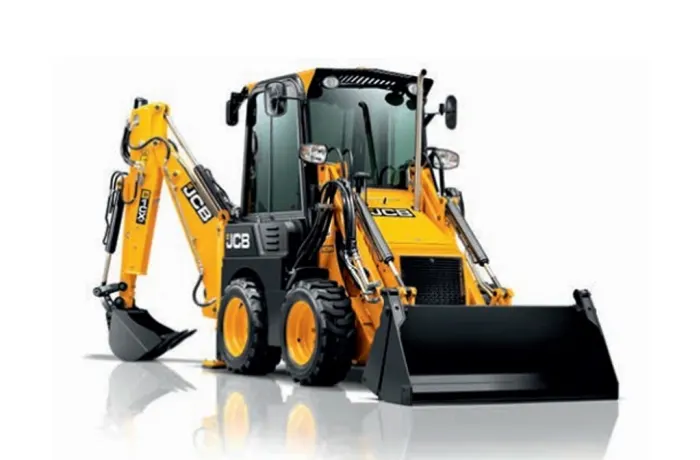

The JCB ICX / ICXT Backhoe Loaders are compact, high-performance machines that combine the functionality of a skid steer loader with a fully capable backhoe, ideal for contractors working in confined spaces, urban environments, landscaping, utility, and rental sectors. Powered by a reliable 2.2 L Perkins 403J-17 Tier 4 Final engine generating 49 hp (36.3 kW), these loaders feature hydrostatic transmissions for easy manoeuvrability, and their compact size (under 6 ft wide) allows them to be transported without a CDL and operated in tight access zones. The ICXT variant uses rubber tracks for improved flotation and stability on soft or uneven ground, while the ICX is available in a wheeled configuration for improved speed and mobility. Both machines offer true backhoe performance with 180° boom swing, strong breakout forces, and optional extending dipper sticks increasing digging depth up to 3.08 m (10.1 ft). Their loader arms can handle attachments such as buckets, pallet forks, trenchers, augers, and planers thanks to a high-flow auxiliary hydraulic circuit (~100 L/min). The cab is designed for comfort with intuitive joystick controls, good all-around visibility, and optional HVAC. These machines are engineered on a one-piece chassis with simplified maintenance access and long service intervals, making them ideal for multi-purpose jobsite tasks.

EXCAVATOR SPECIFICATIONS
NET POWER    OPERATING WEIGHT      MAXIMUM DIGGING DEPTH
49hp                          9,600 lb                                     10.1 ft

A versatile, mid size backhoe loader recognized as one of the best-selling models worldwide. It features a 4.4 L Diesel ax engine producing 109 hp (81 kW) with excellent low rpm torque and an ECO mode with auto idle/autos top for fuel savings. The load-sensing hydraulics include a variable-displacement pump (~150 L/min), auxiliary boomerang lines for attachments, and an extending dipper reaching up to ~7.1 m for deep trenching. Its loader end features a 6 in 1 shovel and breakout force 60 kN, while the backhoe offers boom swing and dipper extension. The cab includes single lever loader control, FNR switch, 6 speed power-shift (up to 30 mph on PRO), and ergonomic comfort.

EXCAVATOR SPECIFICATIONS
NET POWER     OPERATING WEIGHT    MAXIMUM DIGGING DEPTH
109hp                      6300 kg                                14.3 ft
